CryoMag 磁傳感器是兩部分結構，操作溫度室溫到 2-4K, 是用于低溫超導射頻腔、量子計算以及其它低溫環境和應用的理想選擇。

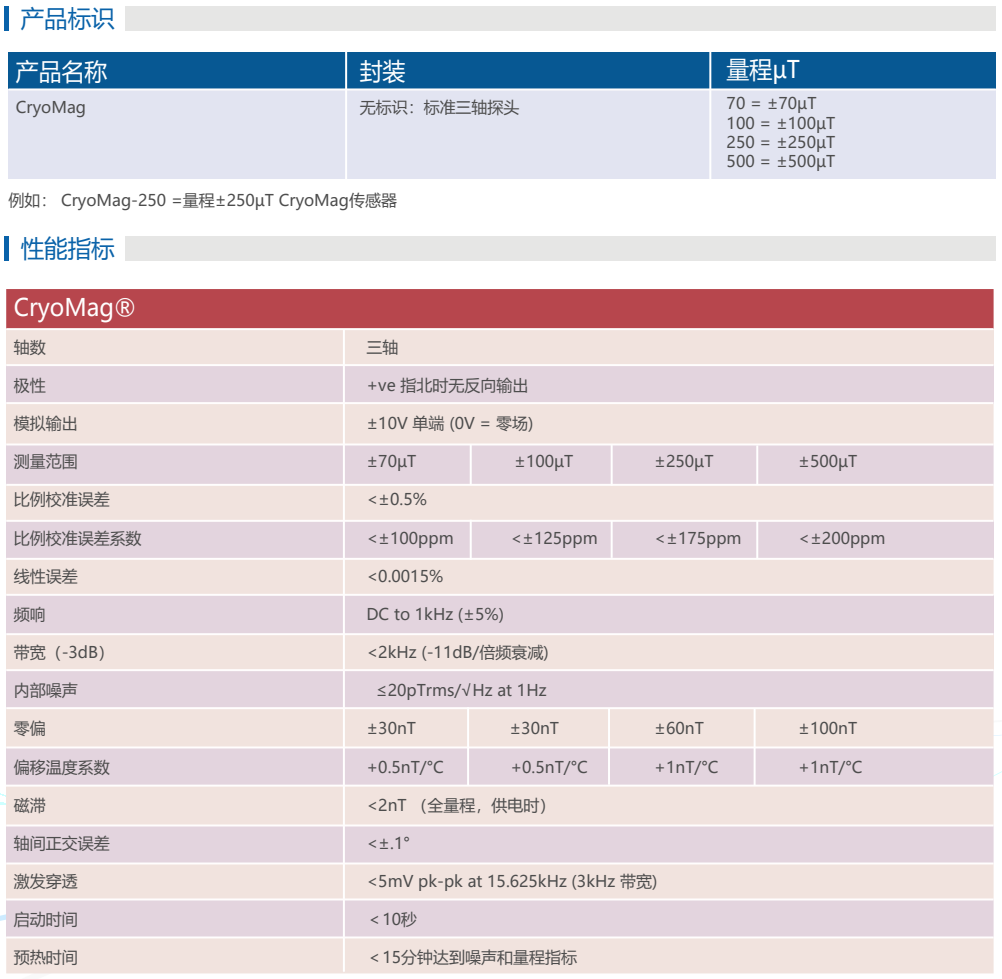

特征：
- 操作溫度低至 2k
- 噪聲低至 <20pTrms/√Hz at 1Hz
- 量程從 ±70,±100, ±250 and ±500μT
- 頻率響應 DC-1kHz

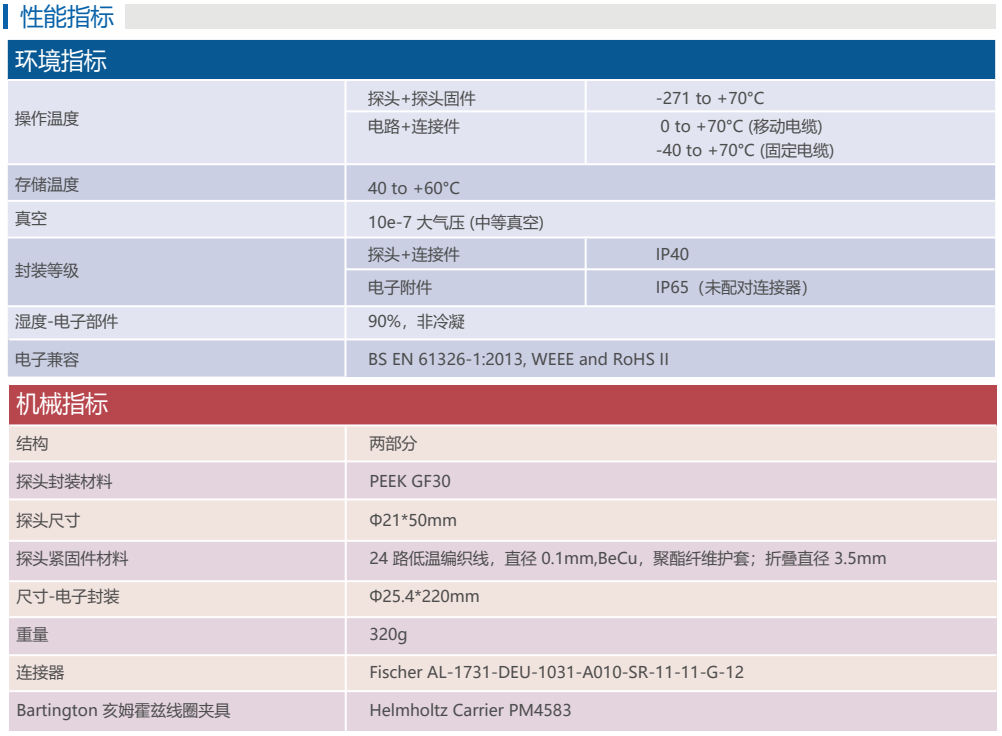

| Mechanical | ||
| Package options | Two Part | |
| Probe enclosure material | PEEK GF30 | |
| Probe harness | Beryllium copper | |
| Dimensions | 3-axis probe | TBC |
| Single-axis probe | TBC | |
| Electronics enclosure | TBC | |
| Weight | <250g target | |
| Connectors | Fisher AL-1731-DEU1031-A010-SR-11-11-G-12 | |
| Jigging Requirements – Customer | TBC | |
| Jigging Requirements – Bartington | Helmholtz Jig/Adaptor | |
| Interconnect cable | Mag-13MS/MC Cable |

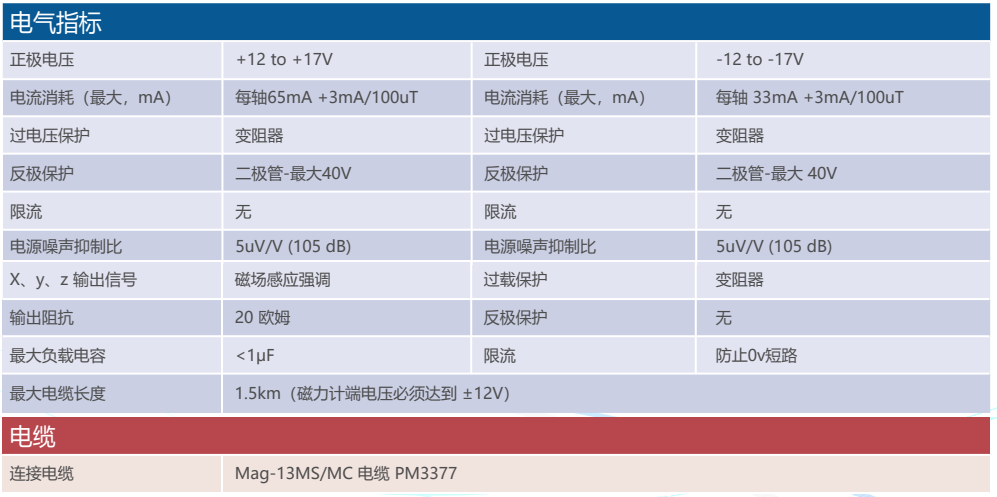

| Electrical | |
| Positive supply voltage (range) | ±12 to ±17V |
| Current drawn (max. mA) | 65mA +1.4mA/100uT on each axis |
| Over-voltage protection | Varistor |
| Reverse polarity protection | Diode – 40V max |
| Current limit | None |
| Power Supply Noise Rejection Ratio | 5uV/V (105 dB) |
| Negative supply supply voltage (range) | -12 to 17V |
| Current drawn (max. mA) | 33mA +1.4mA/100uT on each axis |
| Over-voltage protection | Varistor |
| Reverse polarity protection | Diode – 40V max |
| Current limit | None |
| Power Supply Noise Rejection Ratio | 5uV/V (105 dB) |
| Output Signals X, Y and Z axes | Magnetic field strength |
| Output Impedance | 10 ohms typical |
| Maximum load capacitance (CLOAD) | >1μF |
| Maximum cable length | 1.5km (but supply must be adequate to achieve ±12V at Magnetometer) |
| Over-voltage protection | Varistor |
| Reverse polarity protection | None |
| Current limit | Protected against short circuit to 0V |
低溫恒溫器及其它低溫環境磁場監測
主動消磁系統反饋探頭
